zs-handling: Unsere Greifersysteme auf einen Blick

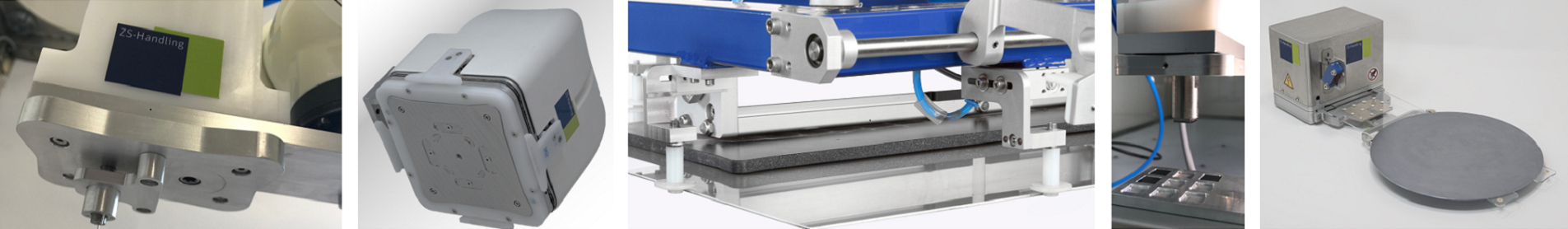

Gripping Sytems Overview

Due to the wide range of possible applications of ultrasound technology, we can offer non-contact end-effectors for various materials and sizes. Damage such as micro-scratches and micro-cracks or contamination of the component can be avoided. In combination with negative pressure, gripping from above is possible even at high accelerations.

Side stops for centering are not needed for small parts (up to ca. 15x15 mm), as these are self-centering on the adapted gripper tip.

Films are kept flat because the ultrasound works evenly over the entire gripper surface.

Thanks to our modular design, we can also combine the grippers with other products or offer complete cells/ systems.

LeviSolar-Gripper

CONTACTLESS TOPSIDE GRIPPING OF SOLAR WAFERS

LeviWafer-Greifer

CONTACTLESS ENDEFFECTOR

OptoMicroMed-Gripper

CONTACTLESS HANDLING OF INTRAOCULAR LENSES

RobotOverhead-Gripper

CONTACTLESS LIFTING WITH ROBOT SYSTEMS
